Fiberglass Antenna Column

Description

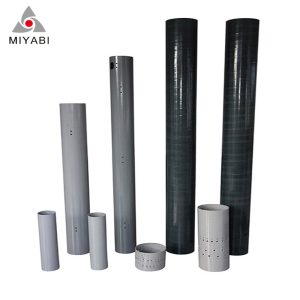

Product name: Fiberglass Antenna Column

Other names: FRP antenna tube, tubular antenna cover, antenna tube, omnidirectional antenna cover, etc.
Internal number: D50*500
Product size: D50mm*L500mm*T2.5mm

Applicable places: Japanese base stations, densely populated areas, etc.
The Fiberglass Antenna Column is controlled by a computer, and the continuous fiber (or cloth tape, pre-impregnated yarn) soaked in resin glue is wound on the core mold according to a certain rule, and finally wrapped with an outer protective layer, and then cured and demolded to make a tubular antenna cover.
Features:
1. The mold uses a seamless steel pipe without slope, which solves the problem of no slope and cannot be demolded in the industry.
2. It can design the winding rules according to the stress conditions of the product, form different winding angles, give full play to the strength of the fiber, and the pressure level can be controlled at 0.1MPa~2.5MPa; the stiffness level can be controlled at SN1250~SN10000
3. Light weight, FRP winding pipe can reduce the weight by 40~60% compared with steel containers of the same volume and pressure, but the strength is equivalent.
4. Excellent corrosion resistance, the material medium can be adjusted to produce different properties
5. High mechanical strength: good water pressure resistance, external pressure resistance and impact resistance and can be designed as required
6. It does not contain radioactive substances, does not interfere with electromagnetic signals, and has strong temperature adaptability: the operating temperature range is -40~80°C, the pipeline does not crack under freezing conditions, and is widely used in outdoor communication antenna shells. It is an ideal protective material
7. The inner wall of the pipeline is smooth, with a roughness coefficient of 0.0084
8. Long life: convenient transportation, with a service life of more than 50 years
Application: Mainly used for various antenna covers.
Specifications can be customized.

E-mail：[email protected]

If you are interested in any of FRP products, please contact me by email and we will be happy to quote our lowest price as soon as we receive your detailed request.
