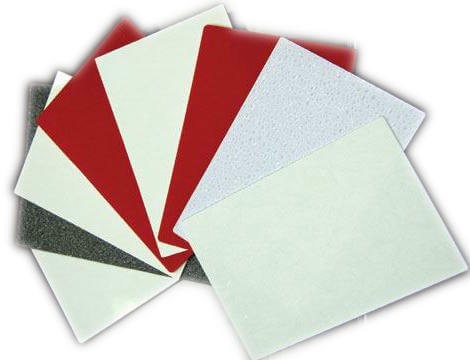

FRP Fiberglass Antislip Sheet and Anti-skid Panel

Founded in 1991, we produce FRP fiberglass Antislip Sheet and Anti-skid Panel. It has been widely applied in the areas of refrigerated compartment inside and outside plate, Recreational Vehicle / caravan inside and outside plate, blood collection vehicle / body examination car inside plate, container inside and outside board, frozen warehouse inside and outside plate, yacht production, insurance cabinet, wall decoration, etc. We are top 10 of this industry in China and many of our customers are world’s top 500 enterprises, such as TOSHIBA, HINO, ANDREW, etc. The size, color, thickness, pattern are all customized.

Category: Others

Description

1.Description

It is manufactured from glass fiber and resin composite by especial technology. With unique natures, it has been widely applied in the areas of refrigerated compartment inside and outside plate, Recreational Vehicle / caravan inside and outside plate, blood collection vehicle / body examination car inside plate, container inside and outside board, frozen warehouse inside and outside plate, yacht production, insurance cabinet, wall decoration, etc.

Specifications:

Thickness: 0.8~5.0mm

Maximum width: 2.6m

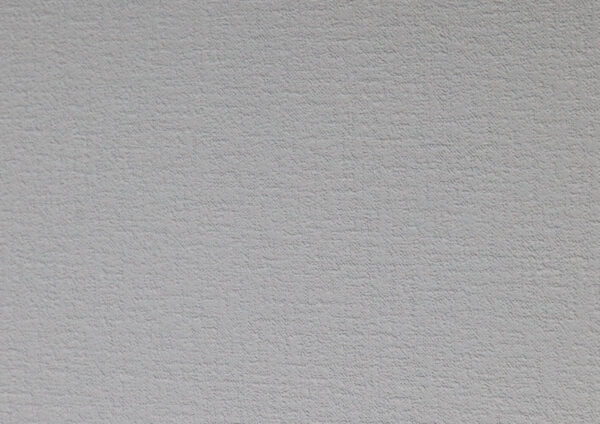

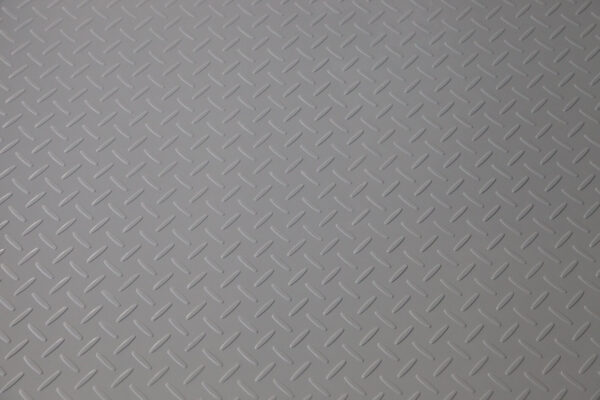

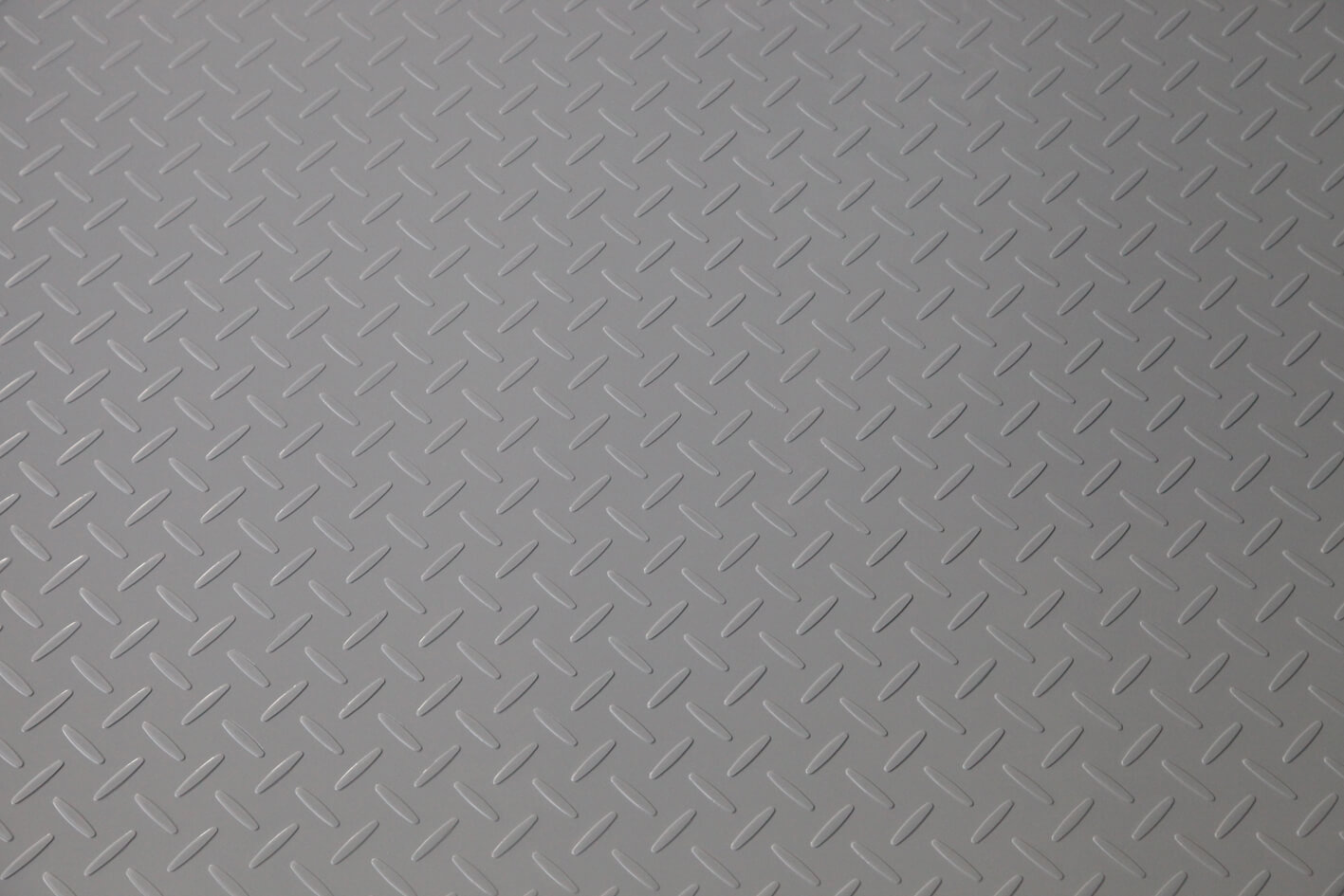

Surface: Plane surface, concave convex surface, pattern surface

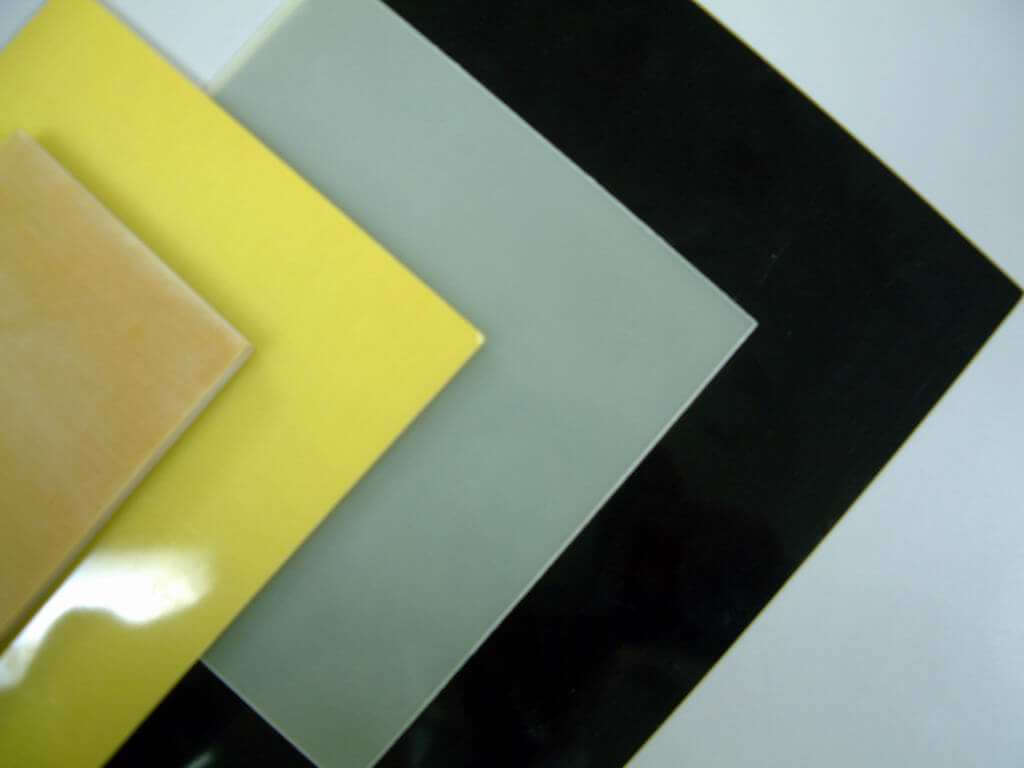

Colors: white, red, yellow, blue, silvery grey, etc., can be customized.

Features:
①High luminosity: Surface is smooth, bright and clean，life limitation can be as long as 10 to 20 years.
②Heat retaining property: it can be used in temperature from -40℃ to 110℃.
③Impact resistance: it has the characteristics of engineering plastics
④Corrosion resistance: it can be cleaned by high pressure water gun or steam, acid and alkali resistant.
⑤Easy to install: it can be installed with rivets or glue, no special tools needed.

⑥Others: sunscreen, heat insulation, good sealing, sound insulation, etc.

Manual FRP Products	Fiber Matrix
Mechanical Property	Unsaturated Polyester Resin
Mechanical Property	Chopped Strand Mat	Carbon Fiber
Glass Fiber Content %	30-40	45-55
Proportion	1.4-1.8	1.6-1.8
Tensile Strength（kg/mm²)	7.0-14	21-35
Coefficient of tensile elasticity（kg/mm²)	560-1270	1050-3160
Expansion and contraction rate %	1.0-1.5	1.6-2.0
Compressive Strength（kg/mm²)	11.0-18.0	21-39
Bending Strength	14-28	32-53
Bending Strength（kg/mm²)	800-1300	1400-2800
Impact Strength（lt-lb/in)	5.0-25	20-30
Rockwell Strength	H40-105
Thermal Conductivity Kcal/mh℃	0.16-0.23	0.23-0.28
Specific Heat（Kcal/mh℃）	0.30-0.33	0.26-0.28
Coefficient of Linear Expansion ( ℃ )	18-32	7.0-11
Hot Bend Temperature ℃	180-200	180-200
Regular Temperature Limitations ℃	65-180	65-180
Insulating Resistance（Volt/mil)	200-400	200-400
Electric Property
Voltage Withstand kv/mm	15-20	15-20
Electric Resistance set	120-180	120-180
Volume Resistivity Ω.cm
Surface Resistivity Ω	1013-1014	10¹³-10¹⁴
Conductivity（1MHz）	3.5-5.5	4.0-5.0
